July 2008 Pictures

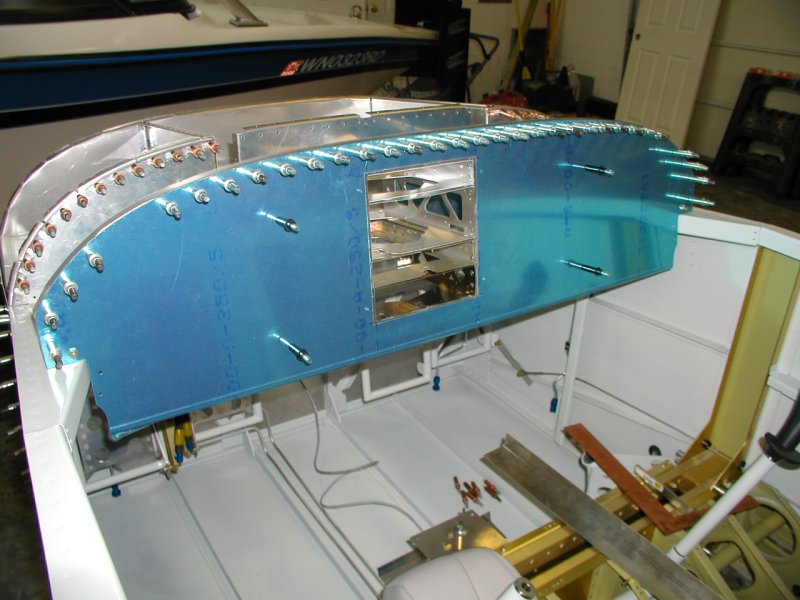

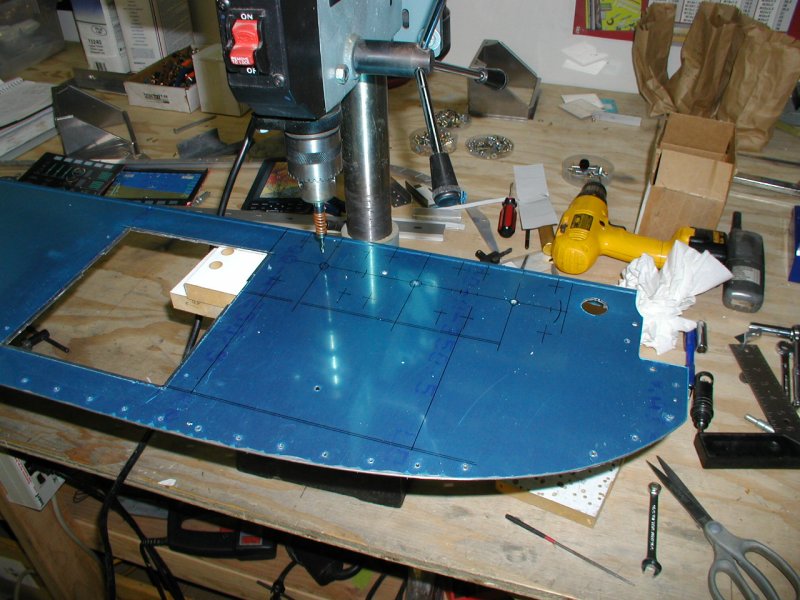

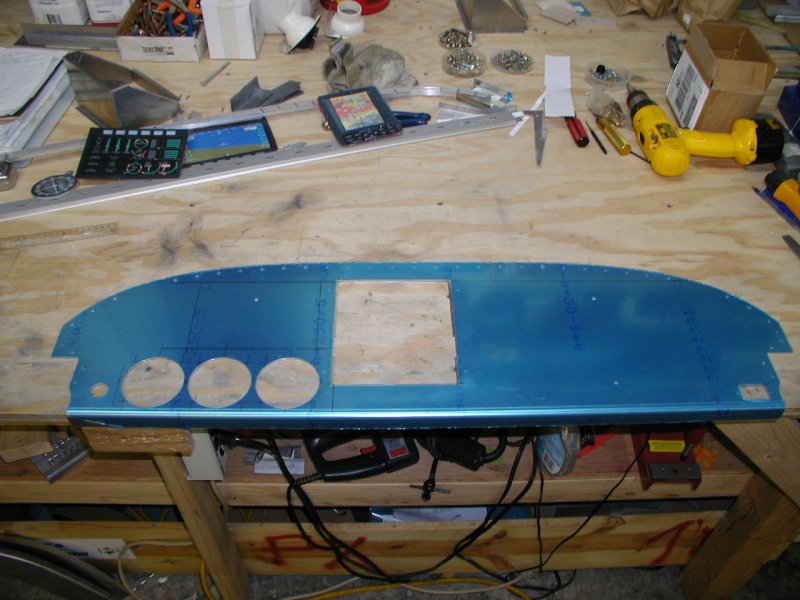

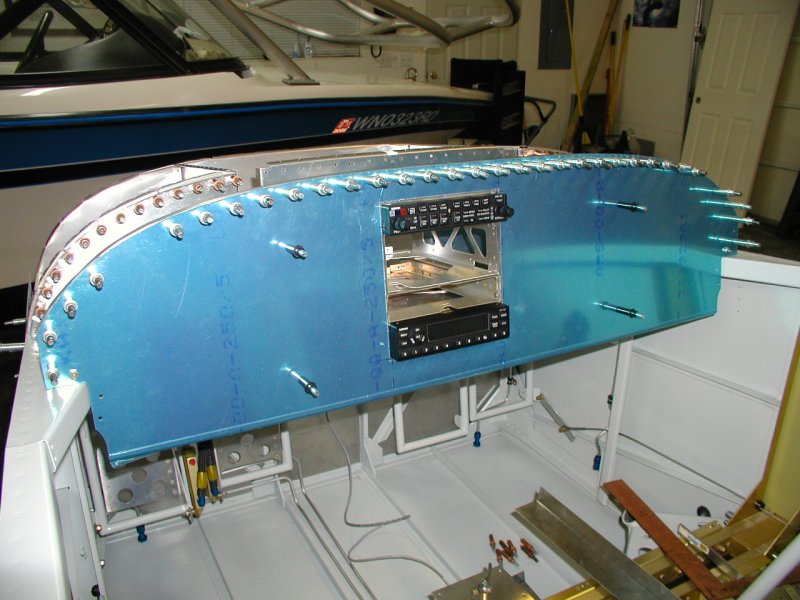

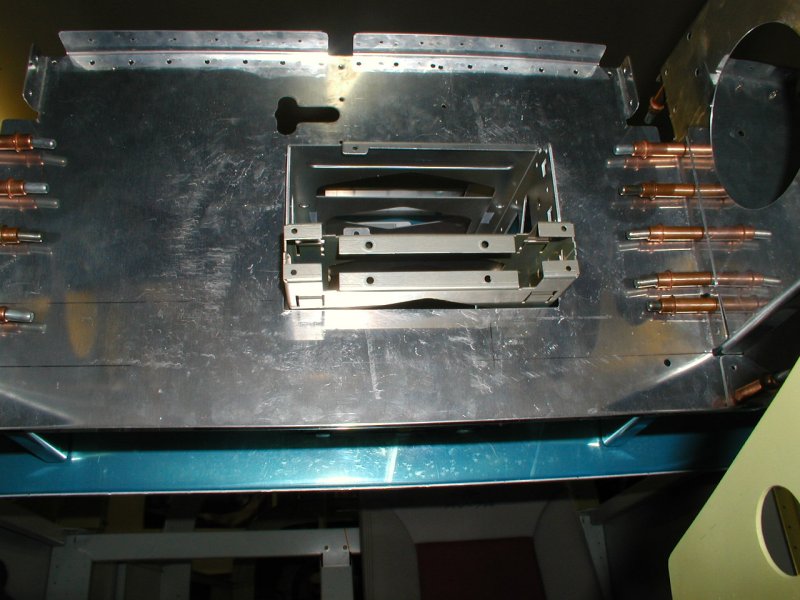

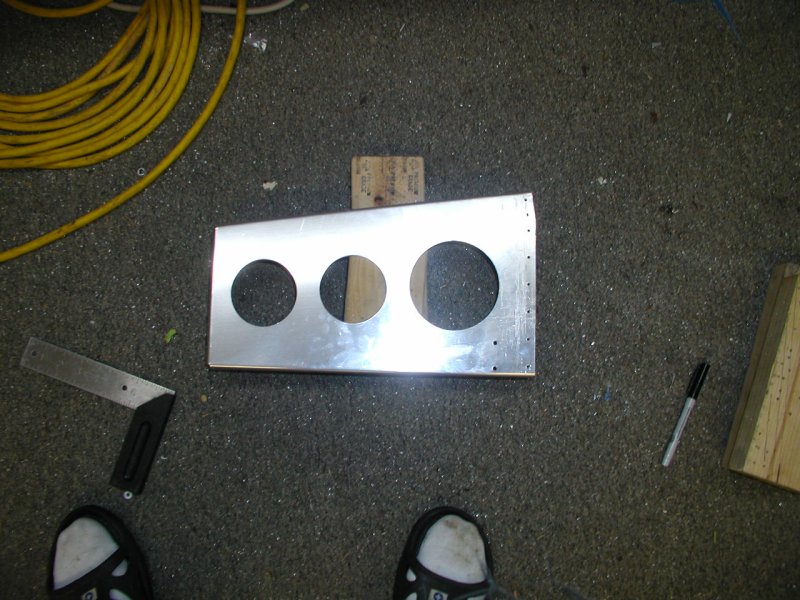

Had to cut a hole in the subpanel for the deeper SL-30 and GNS-430W trays

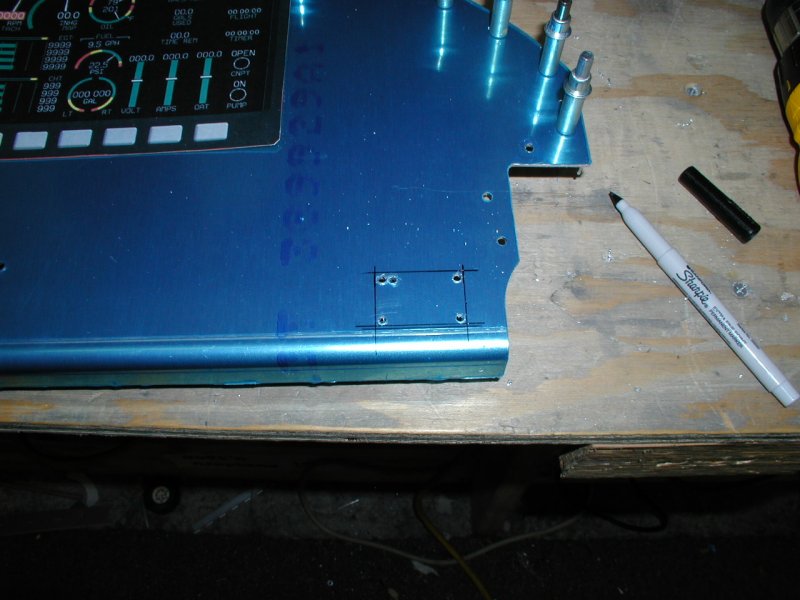

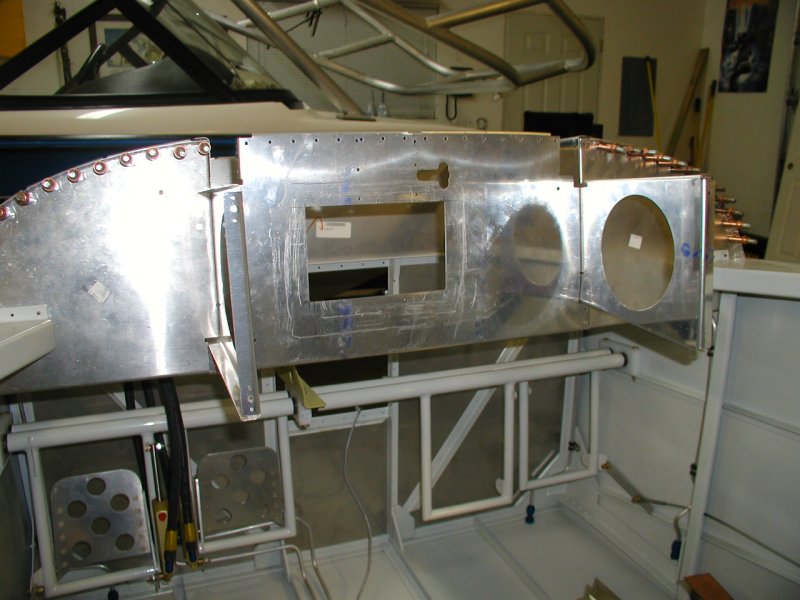

These ribs get cut off, otherwise they would end up in the middle of the Dynon displays. The panel will get supported in other locations.

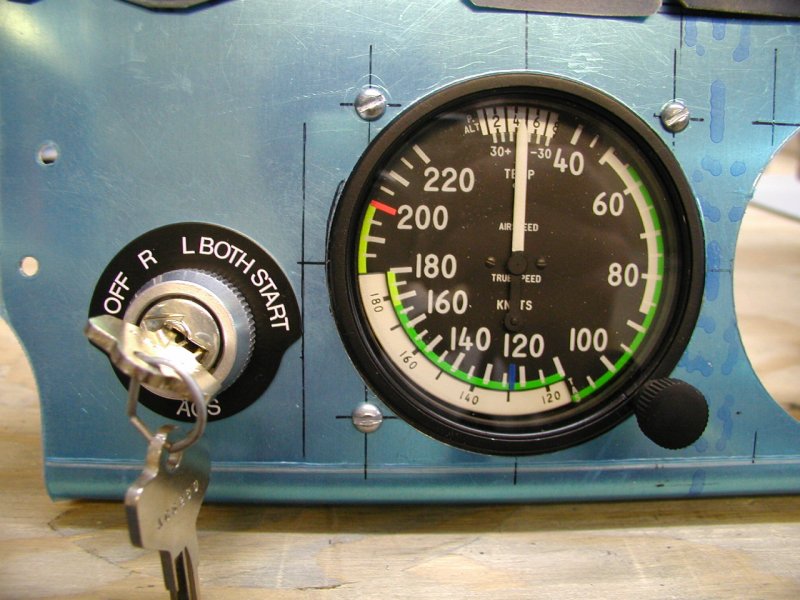

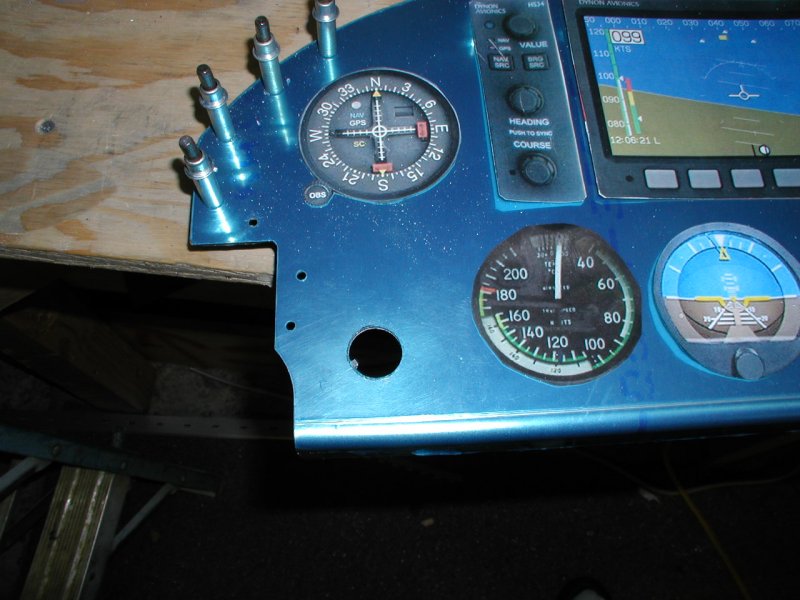

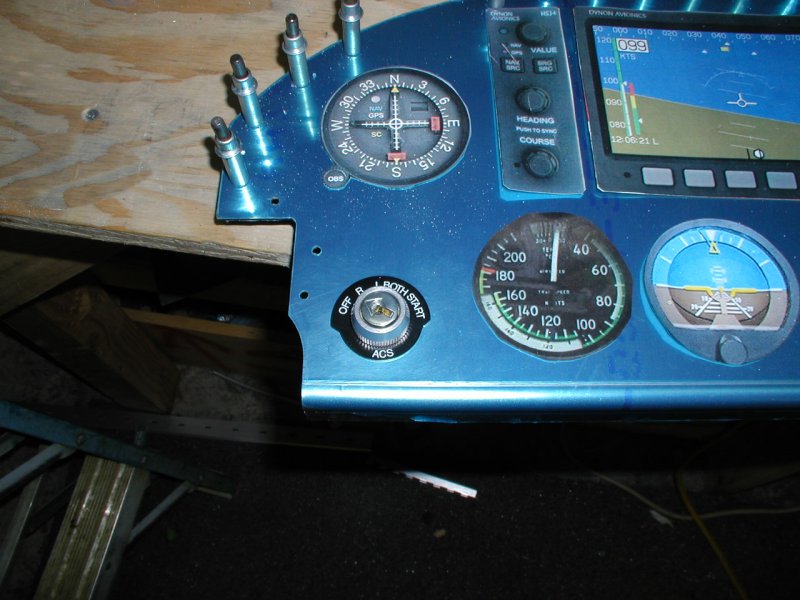

Decided to cut in the ignition switch this morning. You can't just drill a hole because it's keyed. Lots of filing!

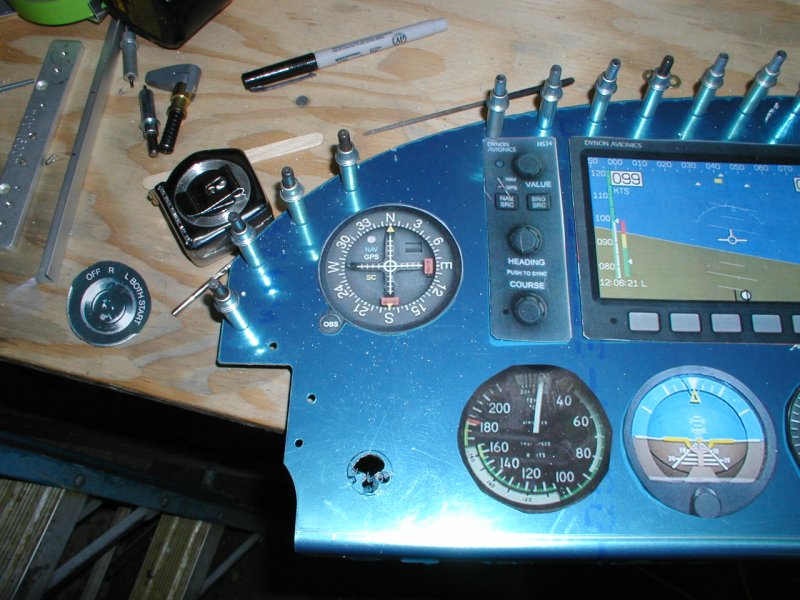

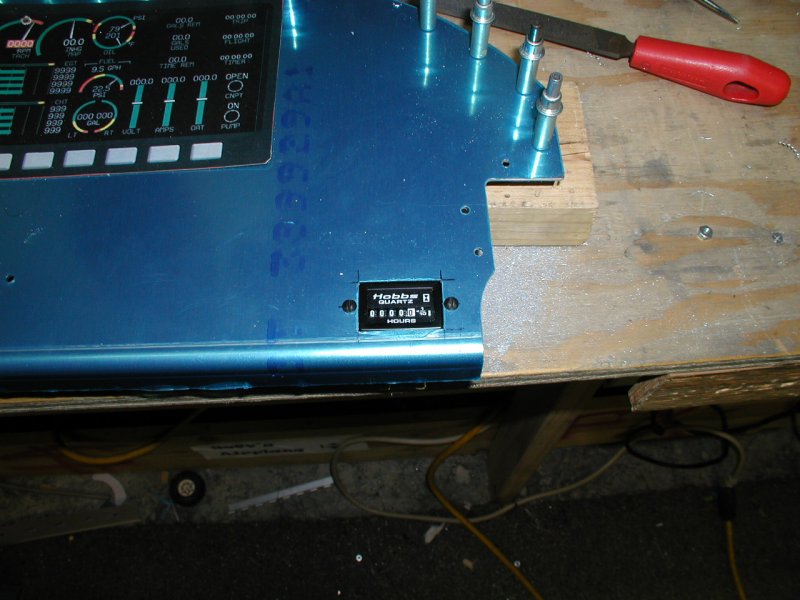

And today it's the Hobbs meter.

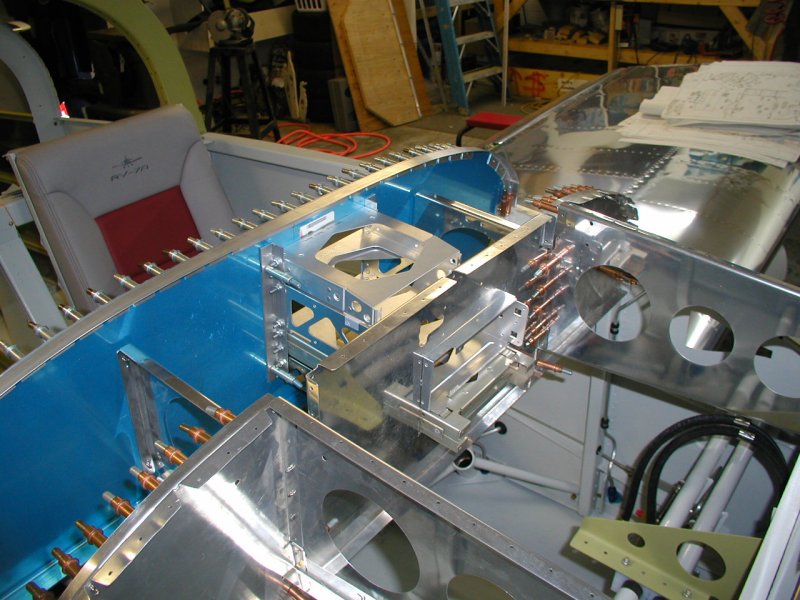

This is the forward part of the canopy frame

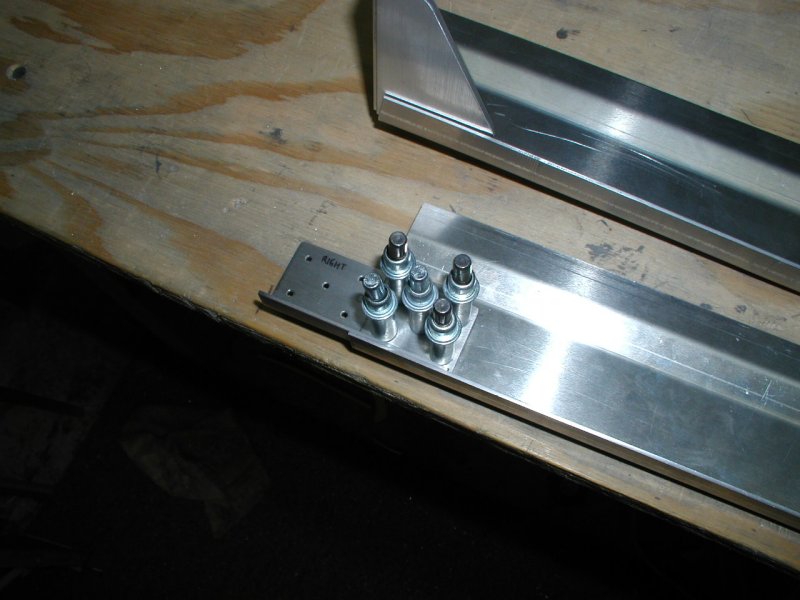

Matchdrilling the forward canopy frame joiner plate

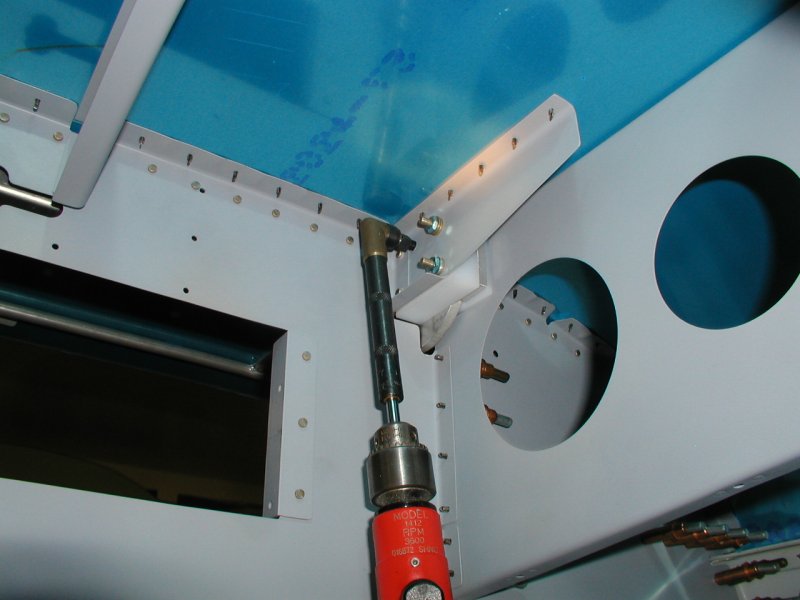

Drilling the hinges to the forward canopy frame
And finally marking the hinges with the drill bit

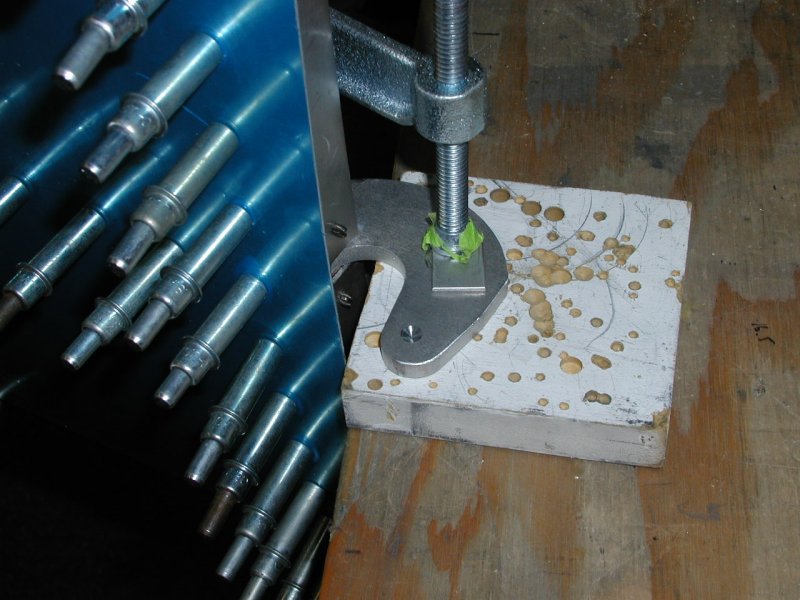

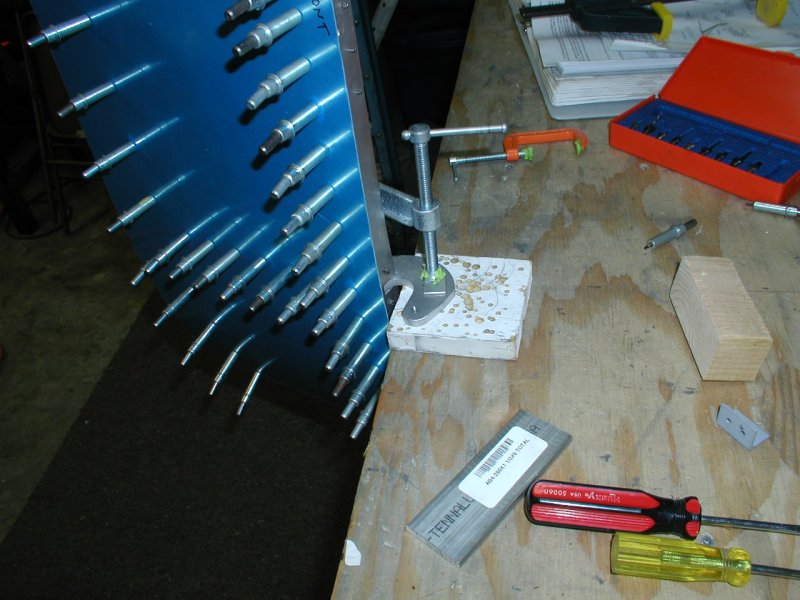

These get drilled with a drill guide to make sure the holes are exactly perpendicular do the surface
Here it is with the hinge pins in

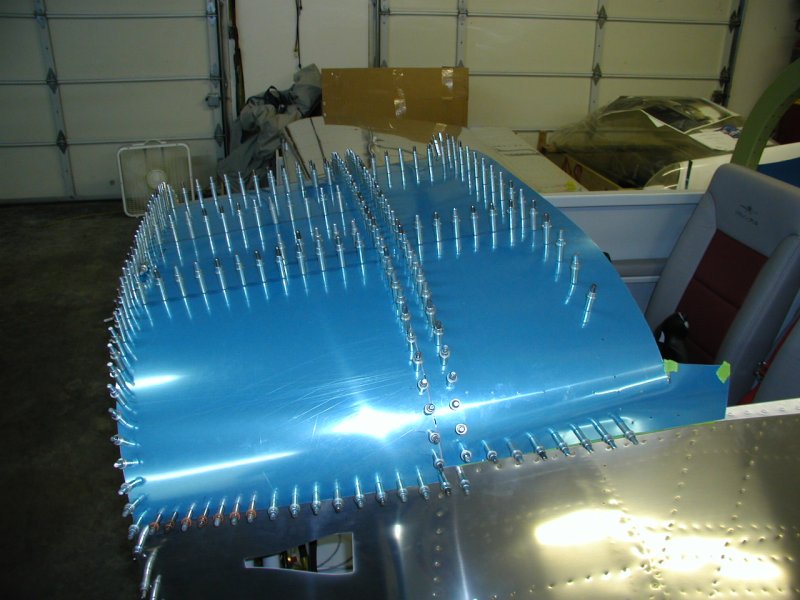

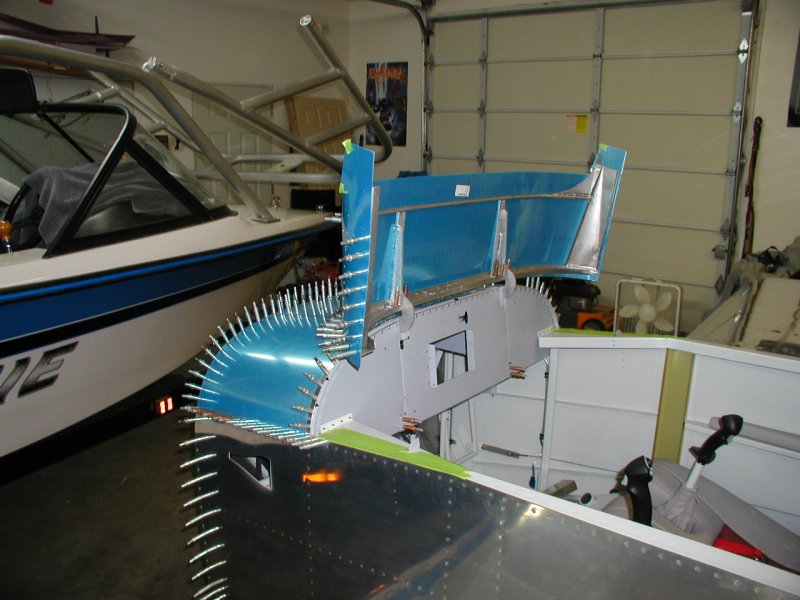

And now with the skin on

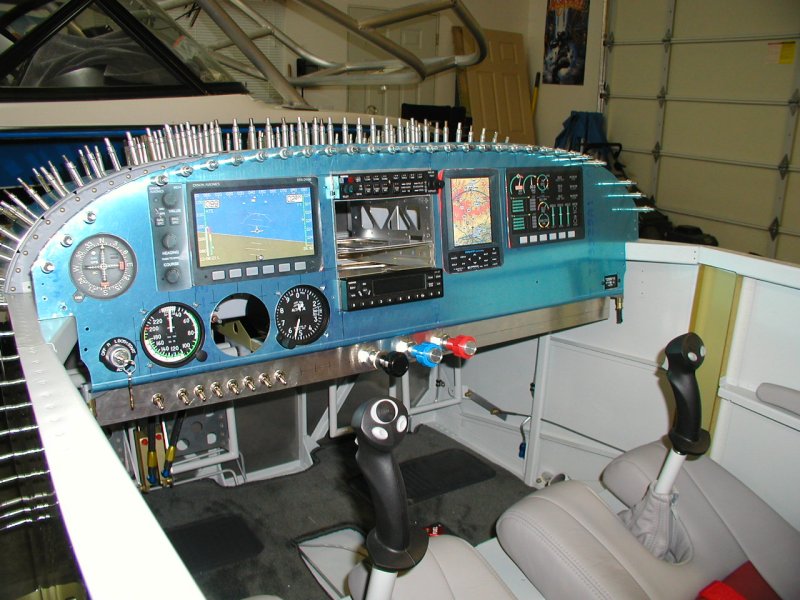

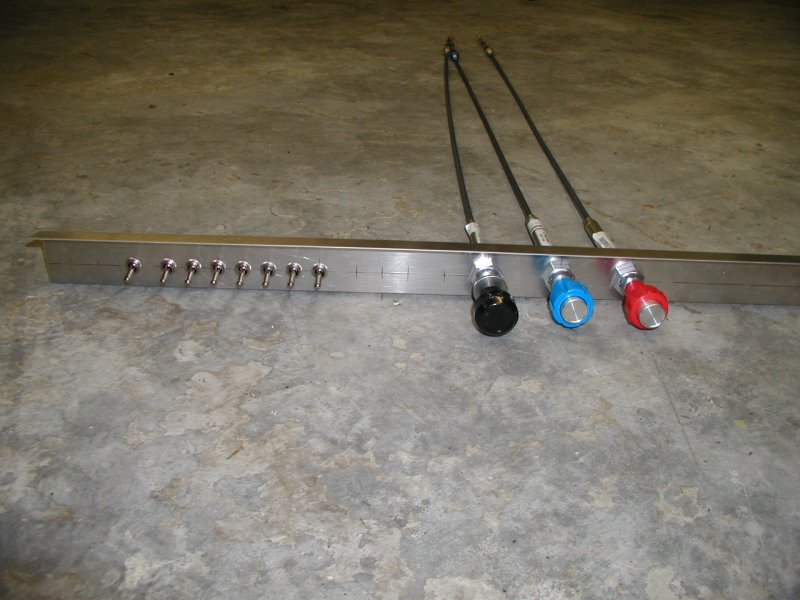

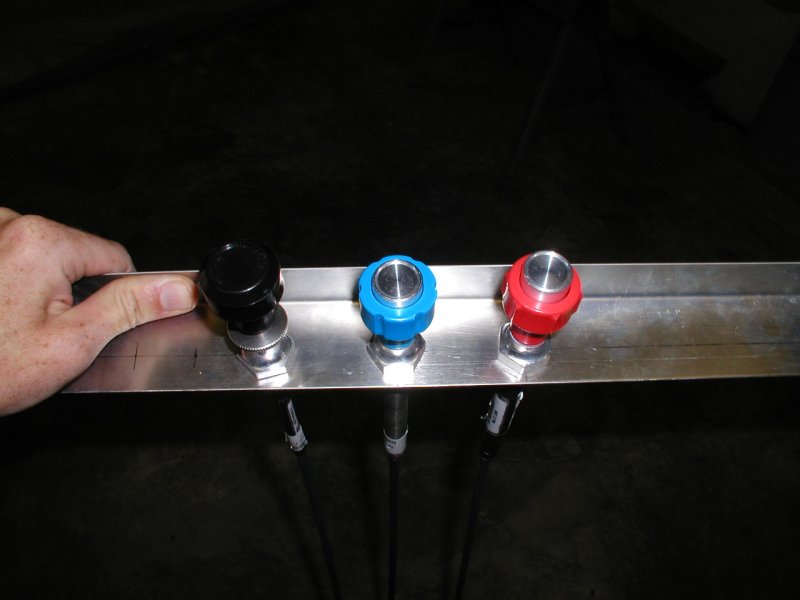

Throttle (Black), Prop (Blue), and Mixture (Red) cables

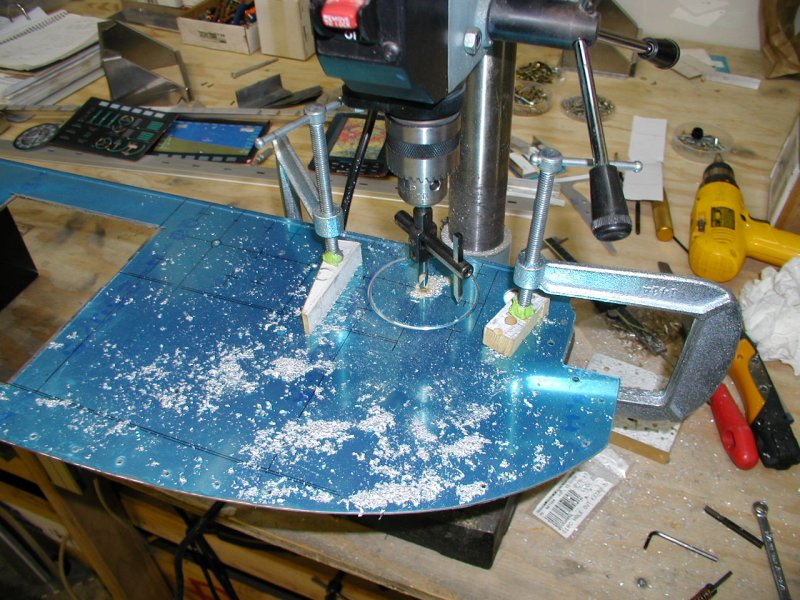

Pilot holes for the flycutter

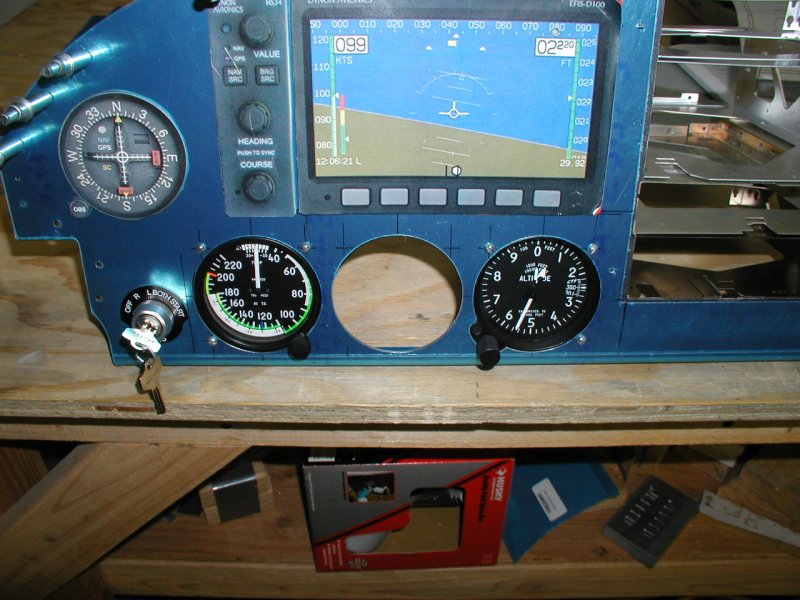

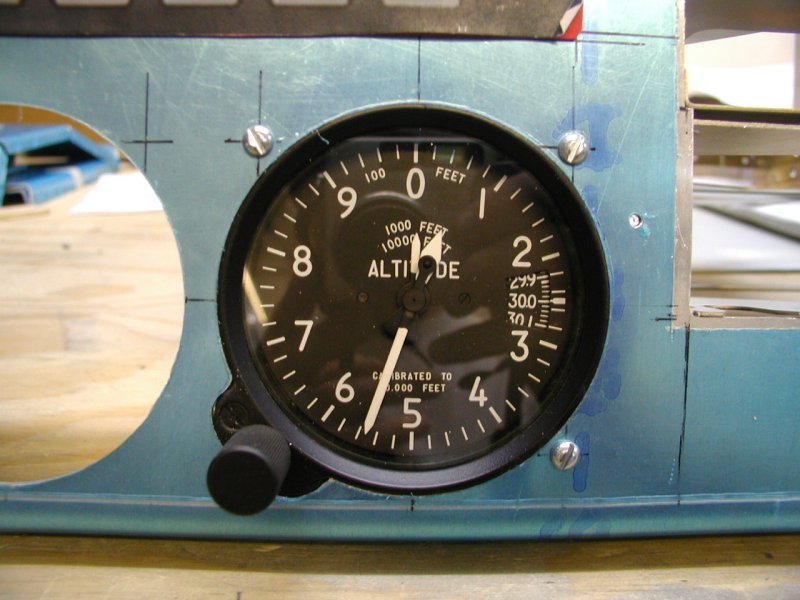

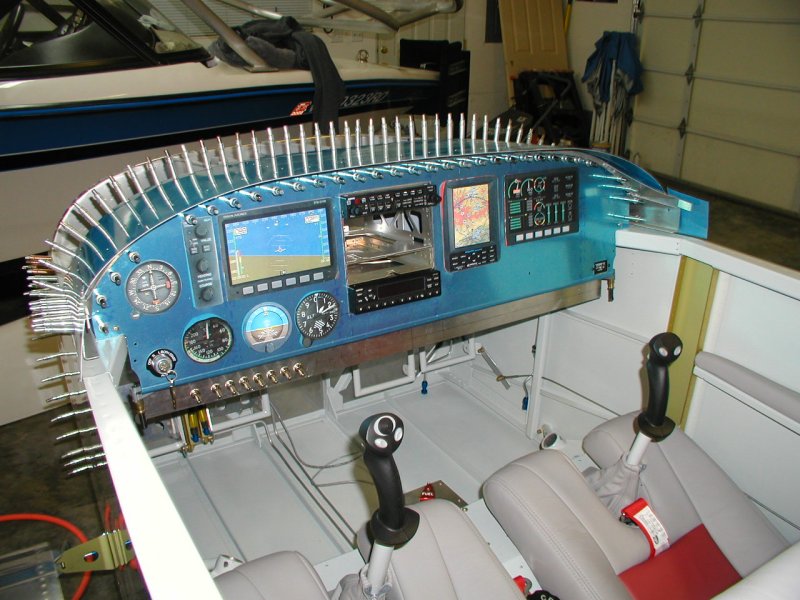

Airspeed and Altimeter installed

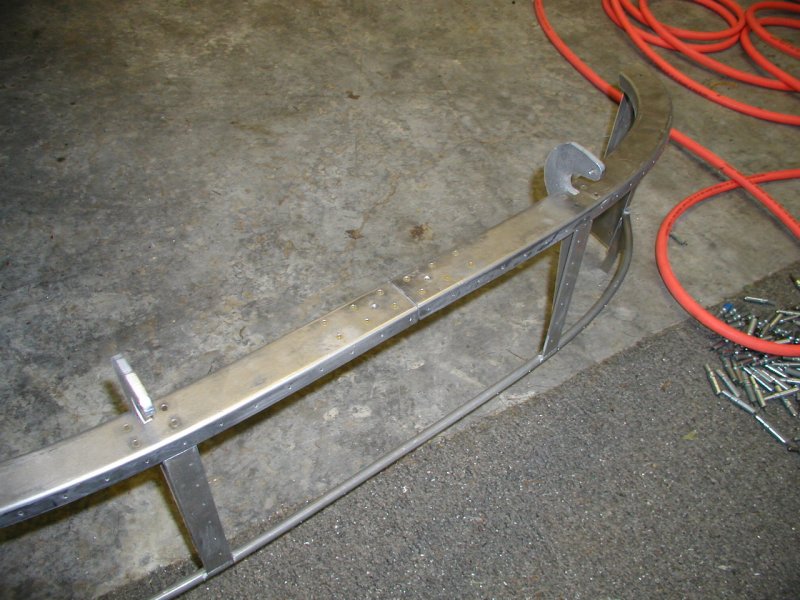

Riveted joiner plate and hinges

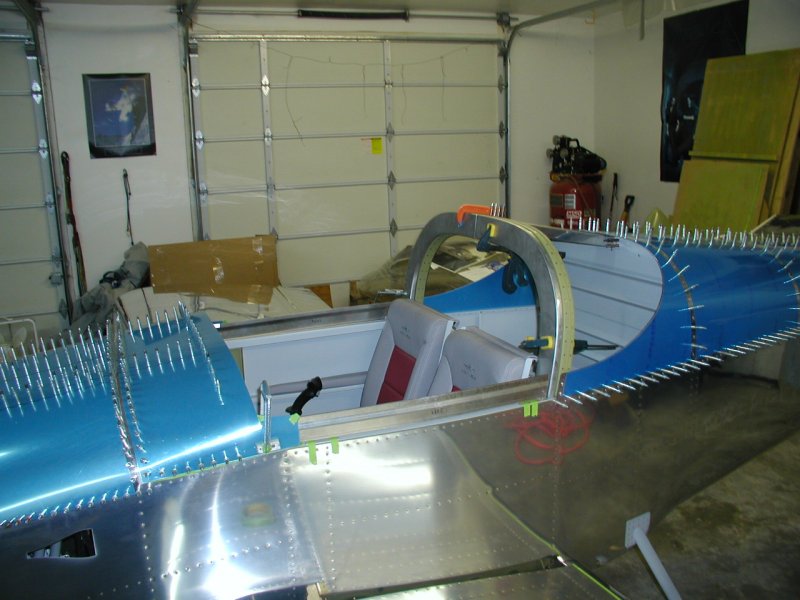

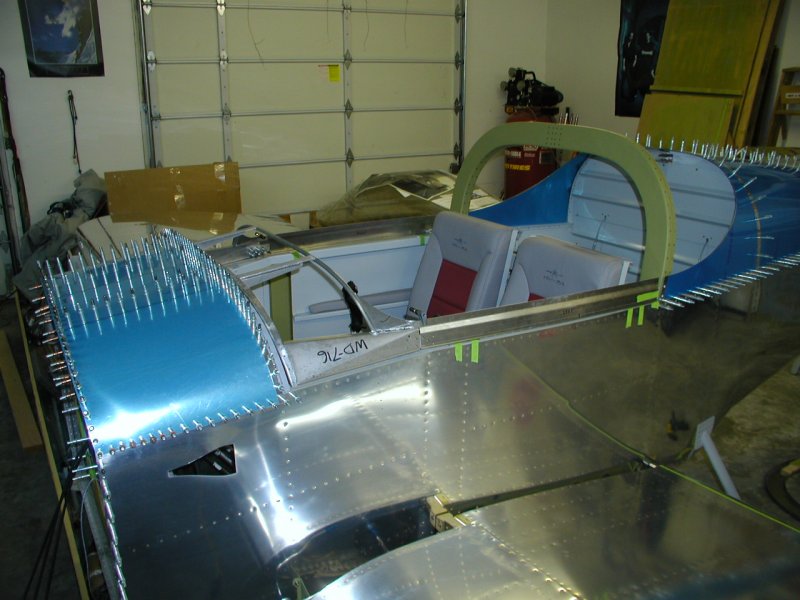

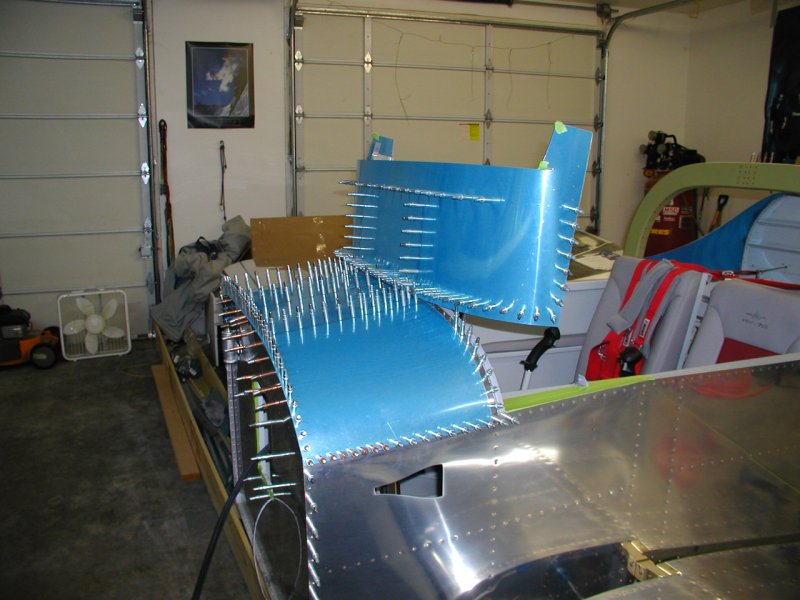

Started laying out the sides and back of the canopy frame
That's a wrap for July. 1700 hours as of today!
